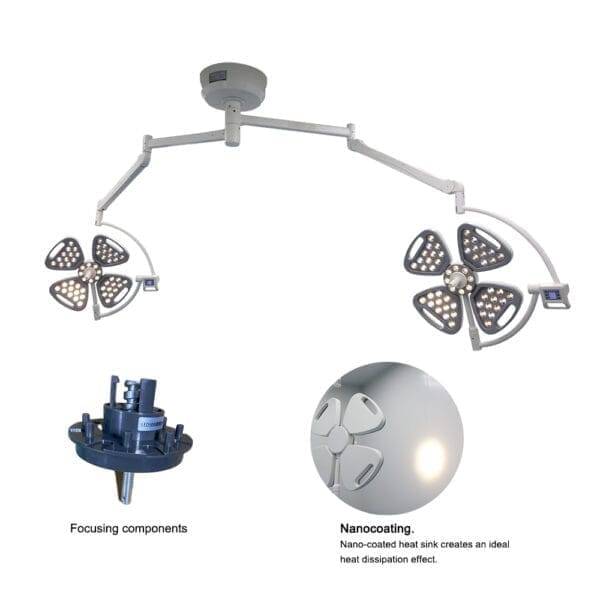

The petal series surgical shadowless lamp can move up and down, left and right,
to meet the needs of different heights and angles in the operation.The entire
shadowless lamp is composed of multiple high-brightness white LED lamp beads.
Several lamp beads are connected in series to form a group, which is called highbrightness light-emitting diode; when the lamp bead fails, the other lamp beads of
the shadowless lamp can still work normally.
Luxurious 4 petal shadowless lamp parameters:
Modell |
YCLED5 |
Die Glühbirne |
56 |
Illuminance(distance 1meter Lux) |
160000 |
Color temperature (K) |
4300±500 |
spot diameter(mm) |
100—300 |
Depth of Focus (mm) |
≥1200 |
Illumination adjusting range (%) |
1-100 |
CRI |
97% |
Color indication index RA |
97% |
Temperature rise at surgeon’s head(℃) |
≤1 |
Temperature rise at surgical working are(℃) |
≤2 |
Aktionsradius (mm) |
≥2200 |
Arbeitsradius (mm) |
600—1800 |
Die Versorgungsspannung |
220 V ± 22 V 50 Hz ± 1 Hz |
Die Eingangsleistung |
400 VA |
Average service life (H) |
60000 |
Lampenleistung |
1W/3V |
Optimale Einbauhöhe (mm) |
2800—3000 |
Lamp head diameter (mm) |
6750 |
